Description

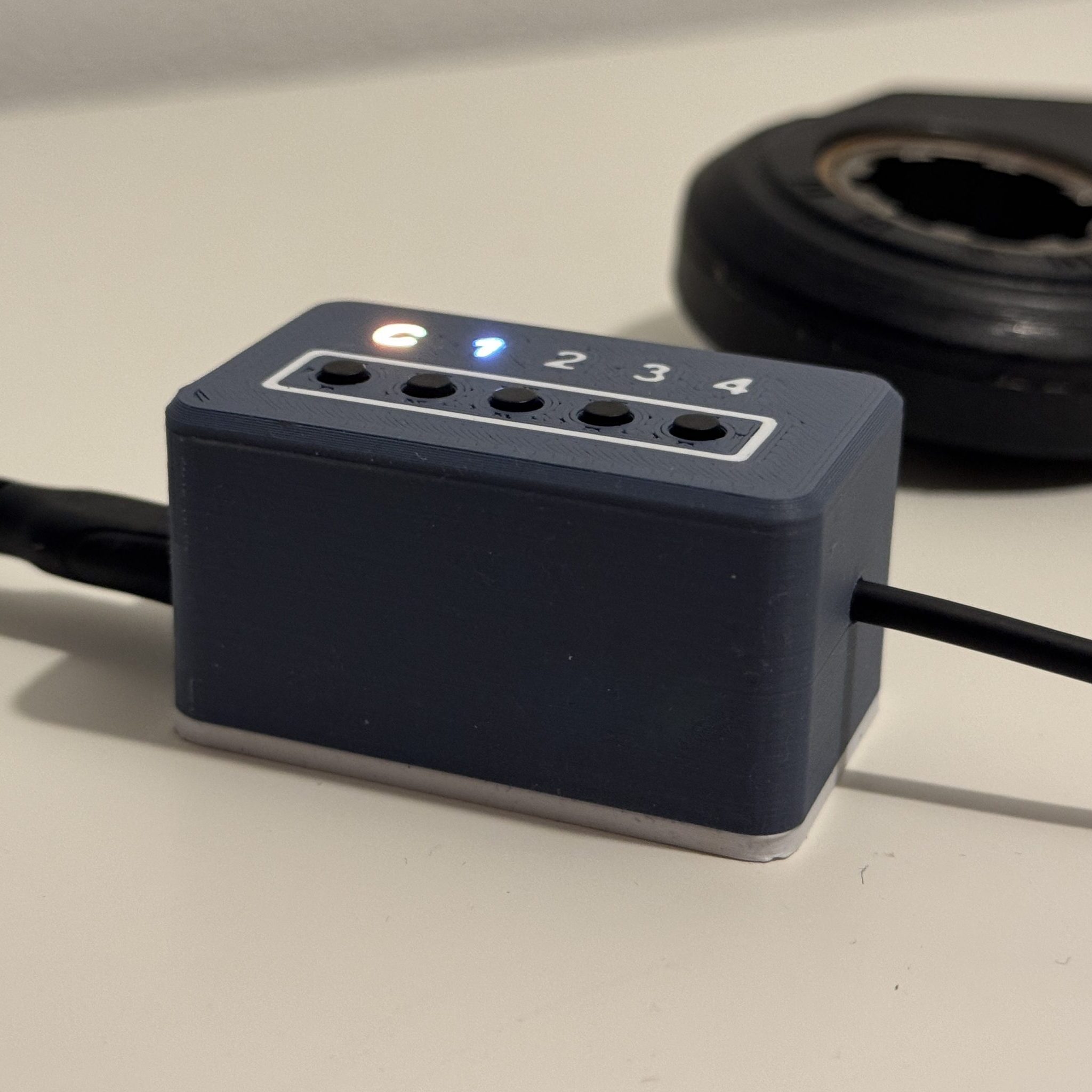

With this tool you can test your e-shifters. It features 5 buttons: 1 to test each gear, and a calibrate button. This calibrates the shifter to find the first gear from every position.
Some notes:

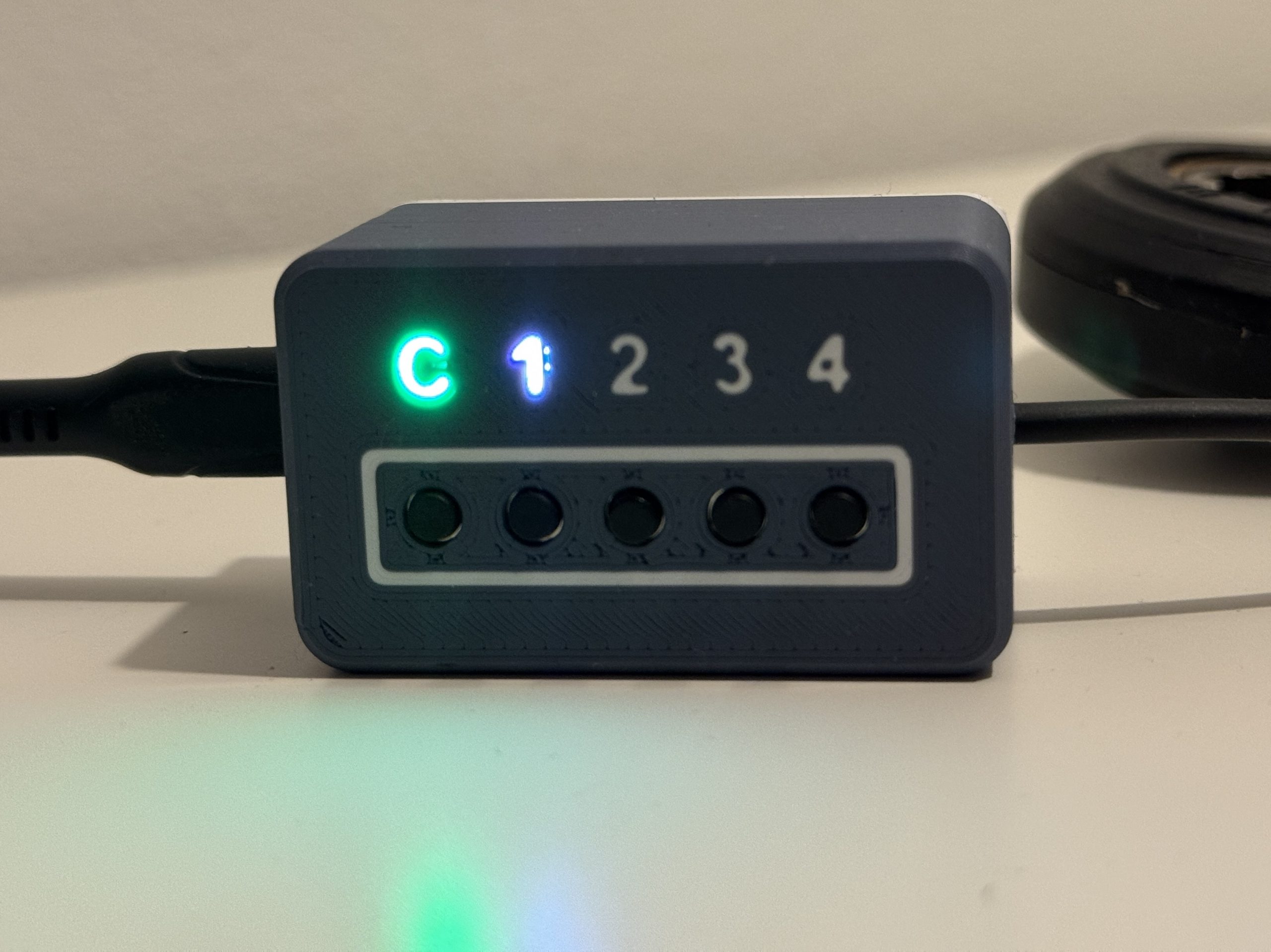

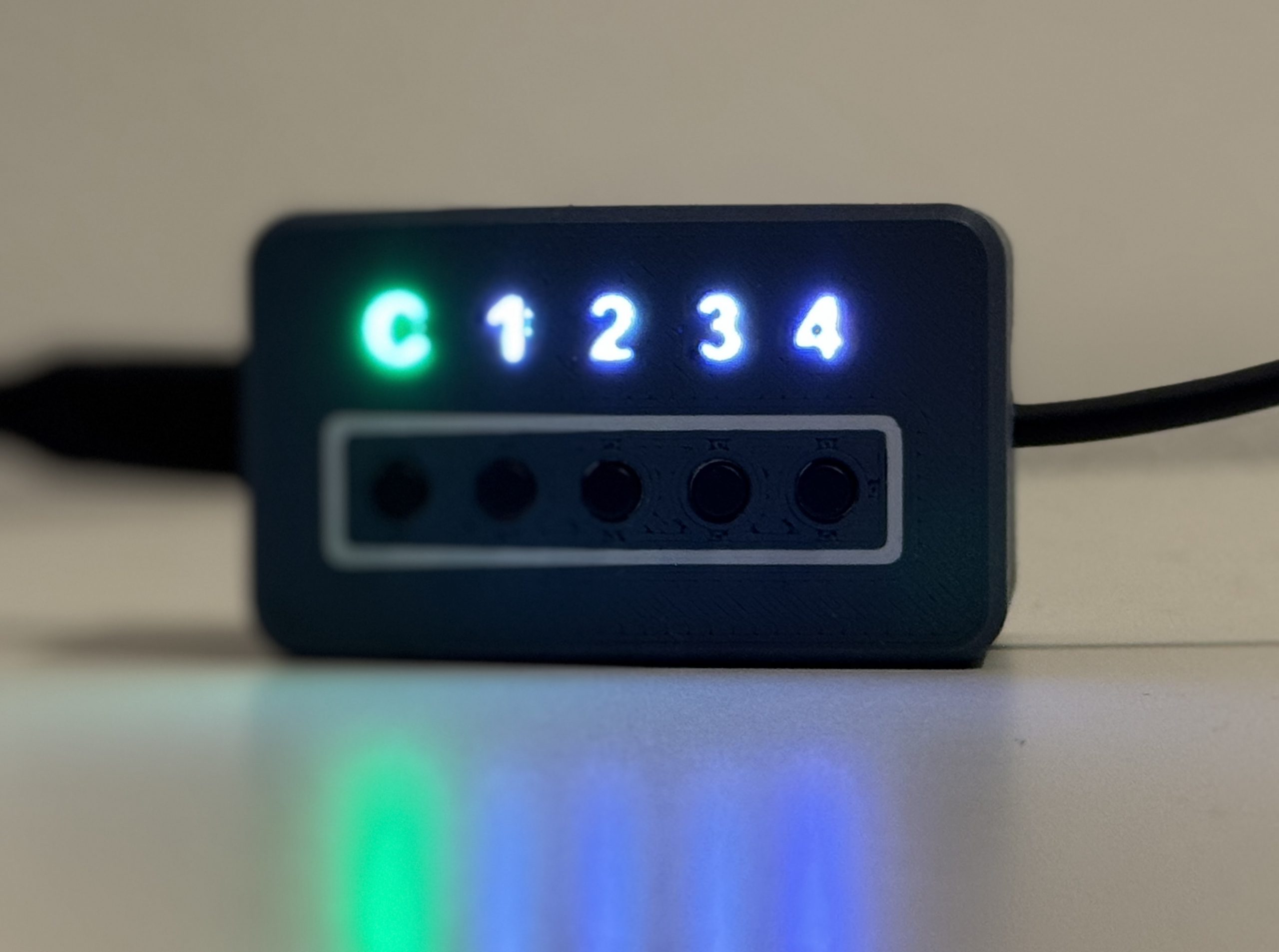

-The requested gear is indicated by a white number
-The current gear is indicated in blue. If the blue light is not working your e-shifter does not talk back (and gives error 44, check the 22 ohm resistor in line with the tx)
-Calibration works by setting it’s position to indicate its in 1. Some shifters move to the first gear automatically
-If the shifter does not respond to button inputs it has some fault.
The tester can be powered by an USB-C cable and a 5v power supply or USB power bank (not included)
See the https://www.moofrepair.com/e-shifter-resources/ page for information on how to fix them
